Description
Baileigh HSP-30M-C H-Frame Press 30 Ton and 10 Ton Hydraulic
With its additional work station, sturdy plate steel construction and piston-style hydraulic pump, this hydraulic H-frame press offers one of the best values on the market.
California Proposition 65 Warning.
Features
- 30 Ton capacity on main press
- 10 Ton capacity on side press
- 27.5 In. Working width
- 5.74 In. Diameter cylinder with 9.8 In. stroke on main press
- 2.76 In. Diameter cylinder with 7.75 In. stroke on side press
- 3HP motor runs on 200V 1 Phase power

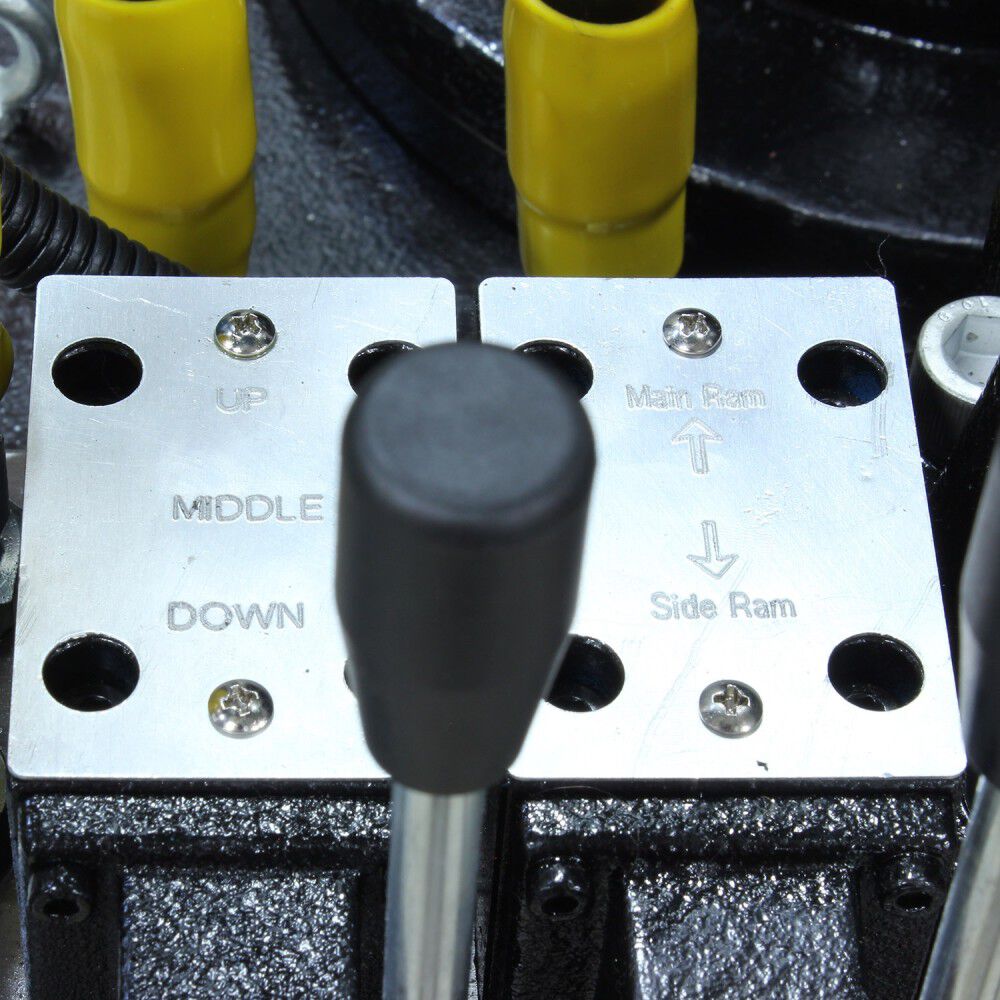

- Main cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects

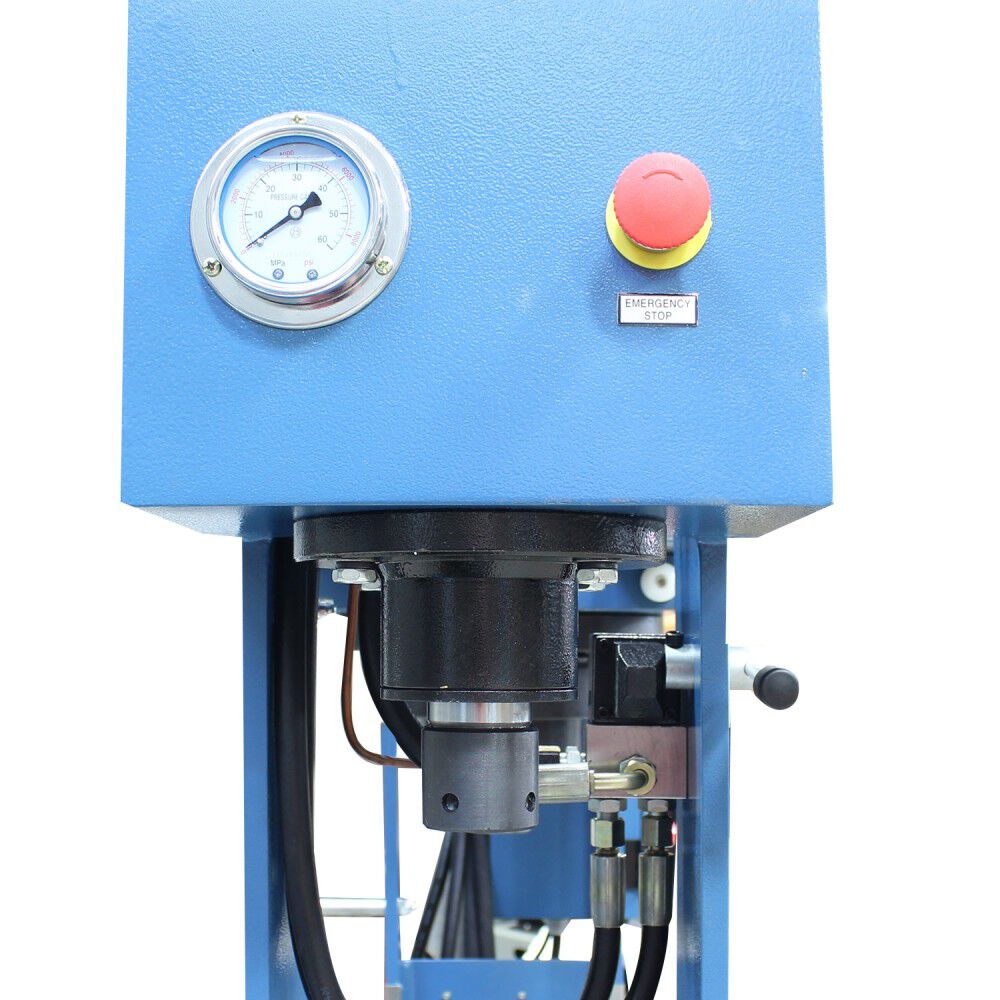

- Comes standard with dual pressure gauges
- Includes 2-piece V-block
Specifications
Brand Name- Baileigh
Assembled Weight (lbs)- 1060
Capacity- 60000 Lbs
Country of Origin- China
Horsepower (hp)- 3
MFG Part # (OEM)- 1019289
Material- Welded Steel
Maximum Diameter (in)- 5.74 Main x 2.76 Side
Package Contents- H-Frame Shop Press
Package Depth- 80
Package Height- 78
Package Weight- 1060
Phase- 1
Product Condition- New
Stroke Length (in)- 9.8 Main x 7.75 Side
UPC- 731325479690
Voltage- 220
Warranty Type- 1 Year
